6 LED Motorcycle Hide Away Surface Mount Light Flashing LED Warning Strobe Lights

Product Description

Hideaway light 6 LEDs strobe light

Per 3Watt MaxGen LEDs

Alternating or simulataneous flashing

There are 2 type for option (8 LEDs, and 6 LEDs) + 5 wires +Per 3Watt LEDs +Aluminum housing base

Detailed Images

6LEDs Strobe LED high away light

Our factory use per 3Watt Max Gen LEDs, very bright in daytime and nightime.12-24VDC
There are 5 wires for simple set up: 1pos, 1neg,1sync,1pattern,1wigwag.
Alternating or simultaneous flashing.

Weather and vibration resistant
Self-contained 16 patterns
We offer 2 years warrantee and MOQ 2pcs

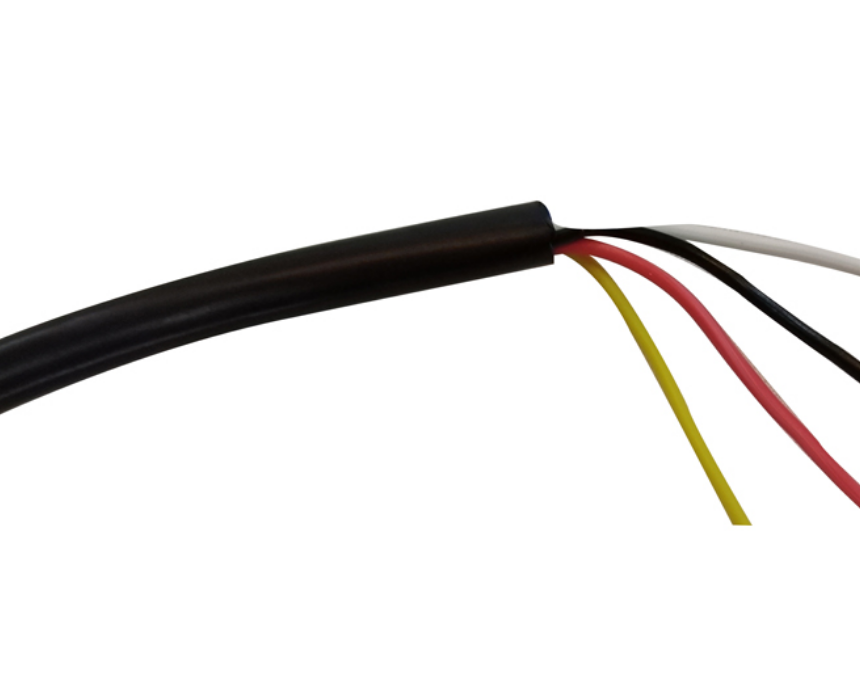

Application mode

Red--------To + VDC (fuse @3A)Black--------To Chassis Ground
Yellow--------Synchronization
-Connect Yellow wires of all heads together for Synchronization
-All heads must be on same flash pattern to be able to sync
White--------Pattern selection
-To select flash pattern,apply white to black
-Less than 1 second for next pattern
-3-5 second for last pattern
-More than 5 second for steady burn or reset
Blue--------Wig Wag function

Two types for option

LED-238

8LEDs

LED-236

6LEDS
